To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZM2DG79W |
| Description | Surface Mount LED; Green; 3.8x2.0x3.2mm; 520 nm; 2690mcd; 60°(H)/35°(V); Water Clear |
| Datasheet | Download Datasheet |

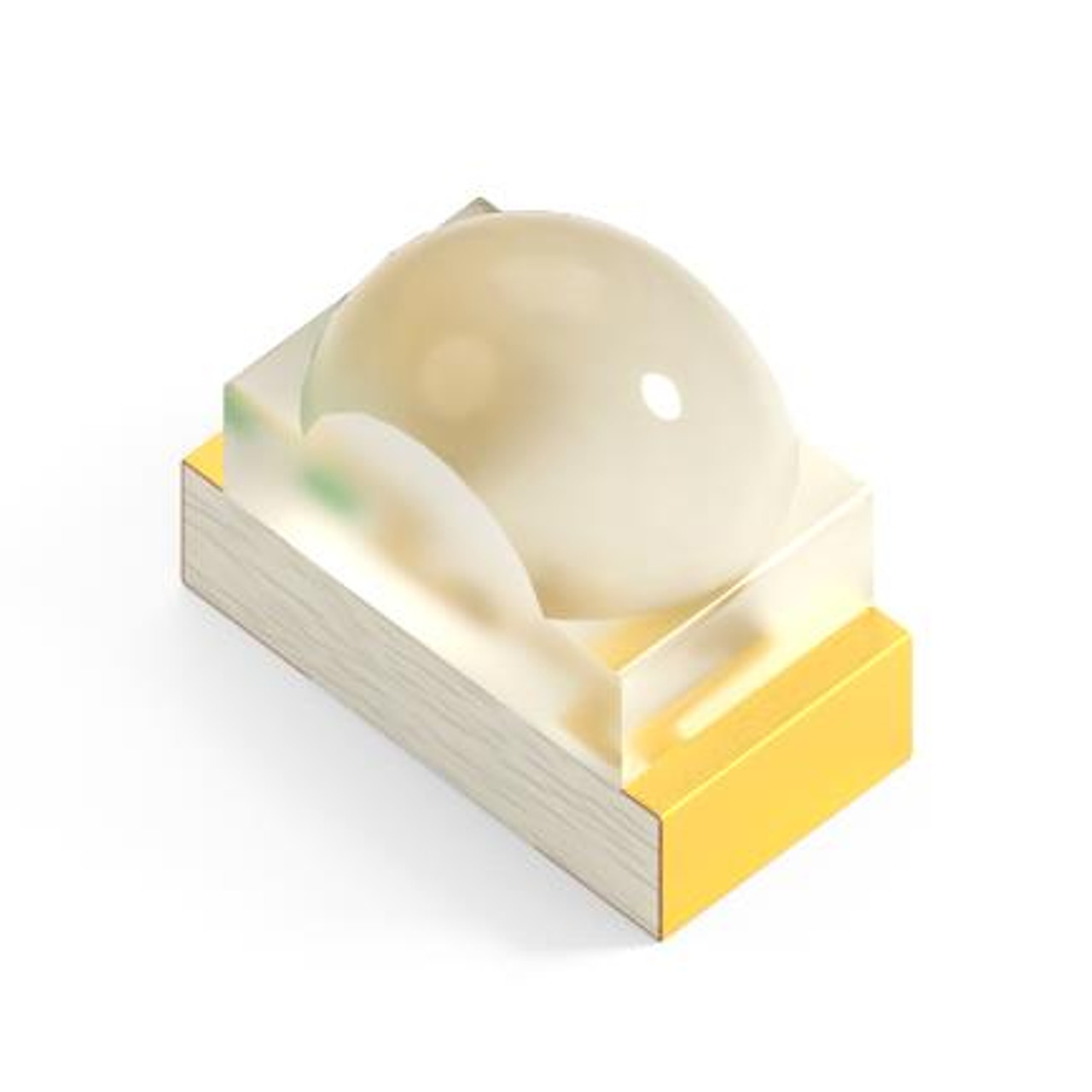

The SunLED XZM2DG79W is a green surface mount LED in a 3.8x2.0x3.2mm package, with a peak wavelength of 520 nm.
It is rated 2690 mcd typical (1900 mcd minimum) at 20 mA, with a forward voltage of 3.2 V (4 V maximum).
Its water clear lens gives a 60°(H)/35°(V) viewing angle.
It is halogen free, and operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Green |
| Configuration | Single Color |
| Peak Wavelength (nm) | 520 |
| Dominant Wavelength (nm) | 525 |
| Luminous Intensity (mcd) | 2690 |
| Luminous Intensity (Min) (mcd) | 1900 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 3.2 |
| Forward Voltage (Max) (V) | 4 |
| Viewing Angle (°) | 60°(H)/35°(V) |
| Lens | Water Clear |
| Package Size | 3.8x2.0x3.2mm (Oval Dome Lens LED) |
| Mounting Type | Surface Mount |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 3.00mm x 2.00mm |
| Height (Max) (mm) | 3.2 |
| Emitting Material | InGaN |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 120 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Features | Halogen Free |
| Moisture Sensitivity Level | 3 |
