To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZMG48WA |
| Description | Surface Mount LED; Green; 3x1.3mm (SOT-23); 565 nm; 9mcd; 140°; Water Clear |
| Datasheet | Download Datasheet |

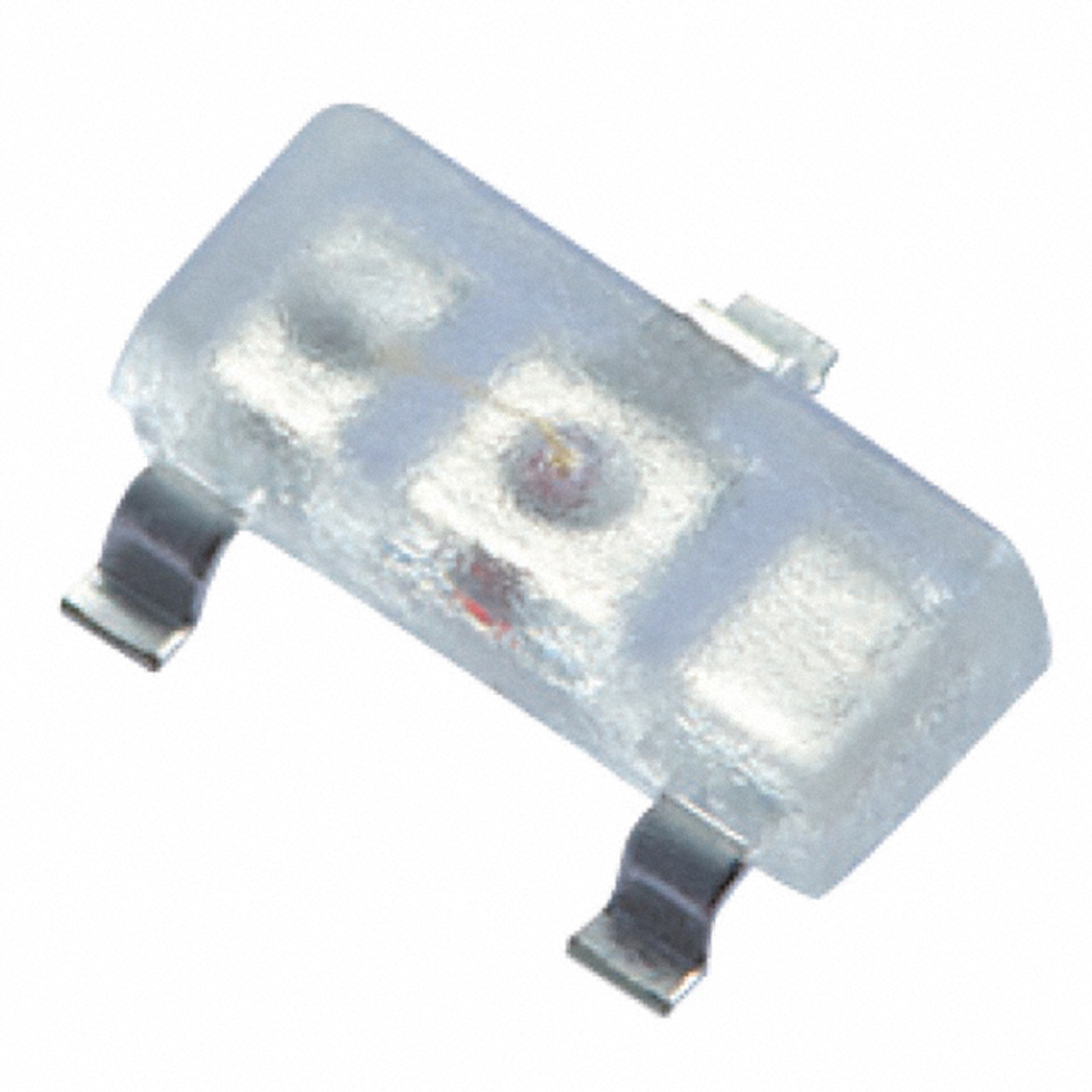

The SunLED XZMG48WA is a green surface mount LED in a 3x1.3mm (SOT-23) package, with a peak wavelength of 565 nm.
It is rated 9 mcd typical (5 mcd minimum) at 20 mA, with a forward voltage of 2.2 V (2.5 V maximum).
Its water clear lens gives a 140° viewing angle.
It operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Green |
| Configuration | Single Color |
| Peak Wavelength (nm) | 565 |
| Dominant Wavelength (nm) | 568 |
| Luminous Intensity (mcd) | 9 |
| Luminous Intensity (Min) (mcd) | 5 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2.2 |
| Forward Voltage (Max) (V) | 2.5 |
| Viewing Angle (°) | 140 |
| Lens | Water Clear |
| Package Size | 3x1.3mm (SOT-23) |
| Mounting Type | Surface Mount |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.00mm x 1.30mm |
| Height (Max) (mm) | 1.2 |
| Emitting Material | GaP |
| Forward Current (Max) (mA) | 25 |
| Power Dissipation (mW) | 62.5 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Moisture Sensitivity Level | 3 |
