Product Description

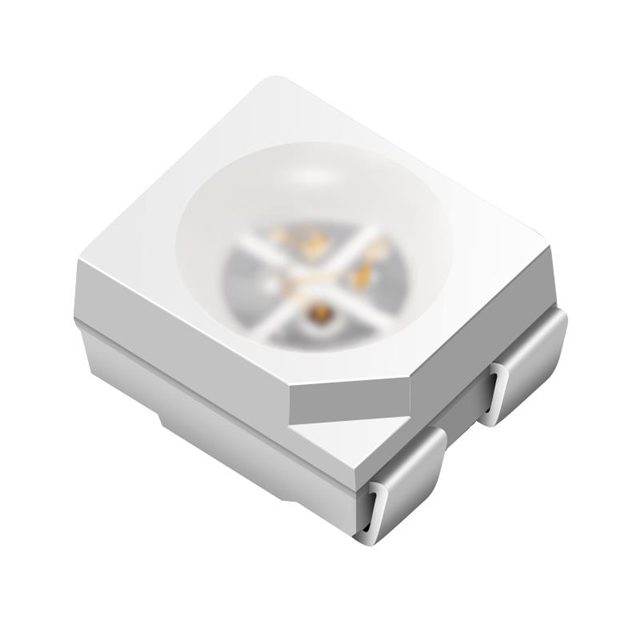

SunLED XZM2CRKM2DGFBB45SCCB Series Surface Mount LED; 4-PLCC; 625nm Red, 525nm Green, 470nm Blue; ; Clear; Colorless; Round with Flat Top; 2.2V Red, 3.2V Green, 3.3V Blue
Surface Mount LED • Color: Red, Green, Blue (RGB) • Lens Color: Colorless • Lens Transparency: Clear • Lens Style: Round with Flat Top • Lens Size: 2.40mm Dia • Voltage - Forward (Vf) (Typ): 2.2V Red, 3.2V Green, 3.3V Blue • Wavelength - Dominant: 625nm Red, 525nm Green, 470nm Blue • Package / Case: 4-PLCC • Size / Dimension: 3.20mm L x 2.80mm W
Product Information
| Manufacturer | SunLED |
| Product Category | LED |
| Product Sub Category | Surface Mount LED |
| Series | XZM2CRKM2DGFBB45SCCB Series |
| Catalog Part Number | XZM2CRKM2DGFBB45SCCB |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Cathode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 497mcd Red, 1590mcd Green, 327mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.2V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 640nm Red, 520nm Green, 465nm Blue |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
