Product Description

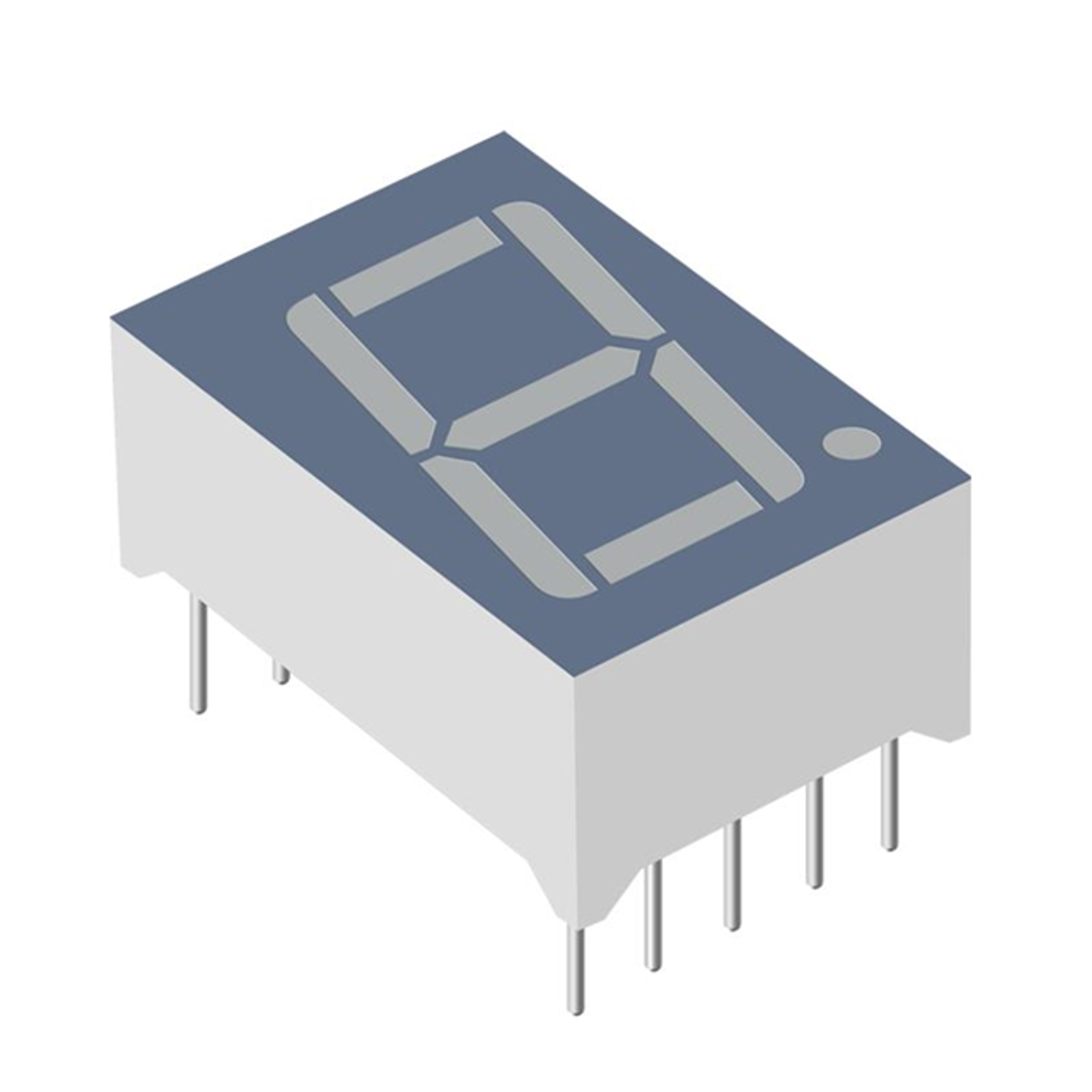

SunLED XDxx14x Series Numeric Display; 1 Digit; 7-Segment; Red; 0.56" (14.22mm); 1.8V; 10-DIP (0.600", 15.24mm)
Numeric Display • Number of Characters: 1 • Size / Dimension: 0.750" H x 0.500" W x 0.325" D (19.05mm x 12.70mm x 8.25mm) • Digit/Alpha Size: 0.56" (14.22mm) • Display Type: 7-Segment • Color: Red • Voltage - Forward (Vf) (Typ): 1.8V • Wavelength - Peak: 660nm • Package / Case: 10-DIP (0.600", 15.24mm)
Product Information
| Manufacturer | SunLED |
| Product Category | Display |
| Product Sub Category | Numeric Display |
| Series | XDxx14x Series |
| Catalog Part Number | XDMR14C-1 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Number of Characters | 1 |
| Size / Dimension | 0.750" H x 0.500" W x 0.325" D (19.05mm x 12.70mm x 8.25mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 10mA |
| Millicandela Rating | 33.99mcd |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 10-DIP (0.600", 15.24mm) |
| Series Features |
| XDxx14x Series |
