To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XDMDK76A-A |
| Description | Numeric Display; Red; 3.0" (76.2 mm); Common Anode; 645 nm; 109.99 mcd |
| Datasheet | Download Datasheet |

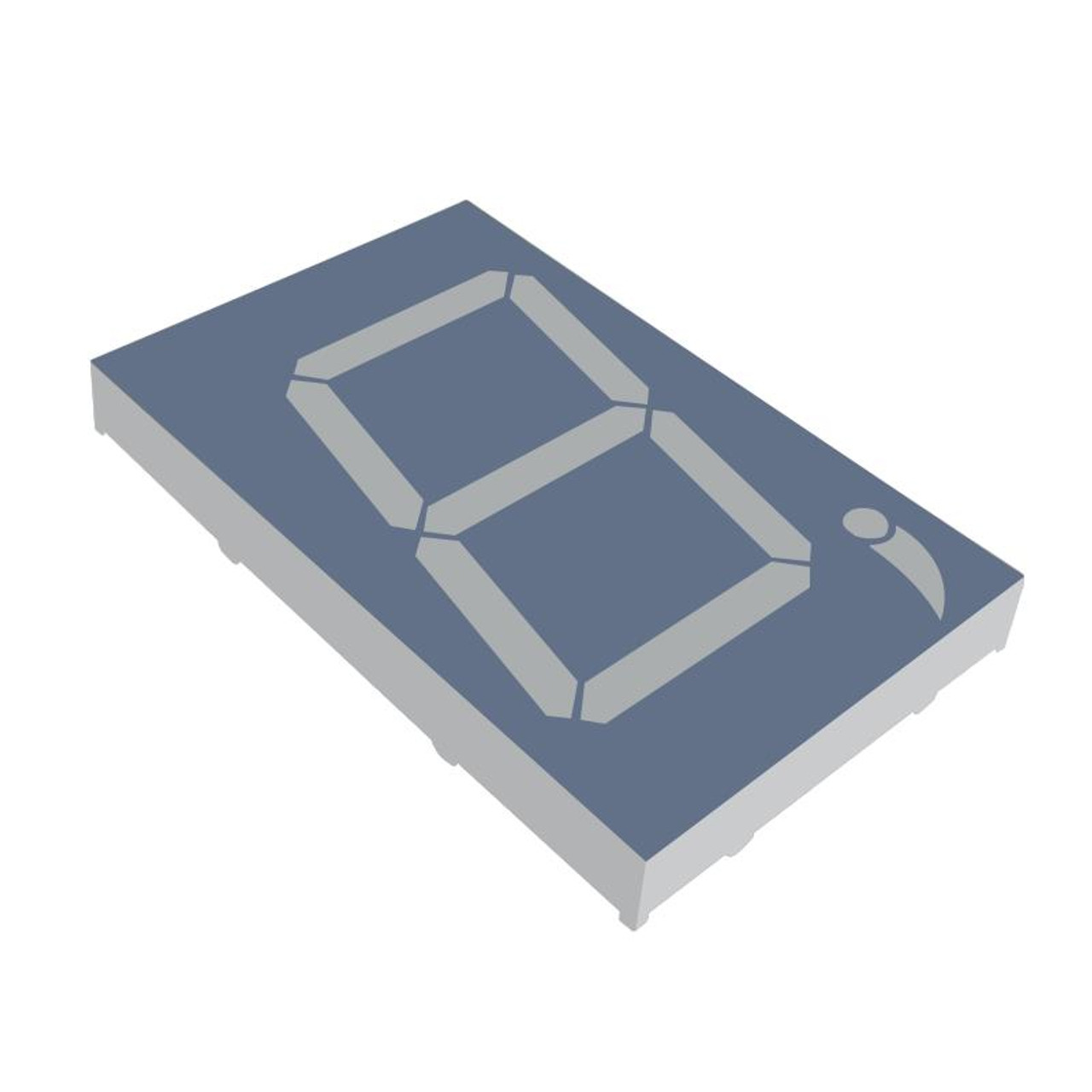

The SunLED XDMDK76A-A is a red 3.0" single-digit 7-segment numeric display with common anode and right hand decimal point.
It has a peak wavelength of 645 nm and 109.99 mcd typical per segment (52 mcd minimum) at 10 mA.
As standard it has a gray face with white segments.
It is a through-hole part and operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Display Type | 7-Segment Numeric |
| Character Height | 3.0" (76.2 mm) |
| Number of Digits | 1 |
| Color | Red |
| Configuration | Single Color |
| Common Pin | Common Anode |
| Decimal Point | Right Hand |
| Face / Segment Color | Gray face with white segments |
| Peak Wavelength (nm) | 645 |
| Dominant Wavelength (nm) | 630 |
| Luminous Intensity (mcd) | 109.99 |
| Luminous Intensity (Min) (mcd) | 52 |
| Test Current (mA) | 10 |
| Mounting Type | Through Hole |
| Emitting Material | AlGaInP |
| Operating Temperature (°C) | -40°C ~ +85°C |
